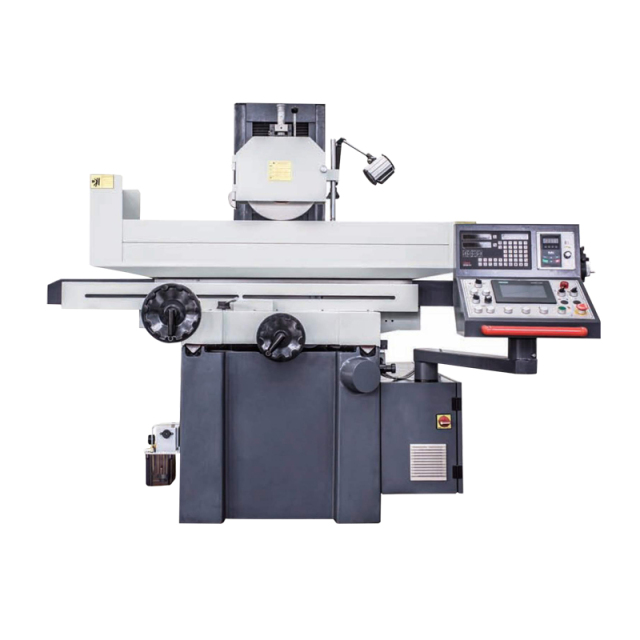

AH: Hydraulic longitudinal feed, Manual cross and vertical feed.AHR: Auto cross feed, Hydraulic longitudinal feed, Rapid vertical feed.AHD: Auto cross feed, Hydraulic longitudinal feed, Auto vertical feed.
Specifications
SGA3063AH
SGA3063AHR
SGA3063AHD
Table size
305x635mm
Magnetic chuck size
300x600mm
Max. distance from spindle to table
580mm
Table cross travel
340mm
Table longitudinal travel
765mm
Max. load capacity of table(including chuck)
270kg
Speed of table longitudinal movement
5-25m/min
Cross motion
Intermittent feed rate
0.1-8mm/t
Rapid speed
990mm/min
Feed of handwheel
0.02mm/div
Vertical motion
Auto down feed rate
/
0.005-0.05mm/t
Rapid down speed
650
480
0.005mm/div
Spindle rotating speed
1450r/min (50Hz), 1750r/min (60Hz)
Grind wheel size
350x40x127mm
Spindle motor power
4kW
Floor space
2900x2200x1900mm
G.W.
2800kg
Packing size
2350x2220x2210mm
Standard Accessories
Optional Accessories
Electrical magnetic chuck
Luxurious splashing board
Coolant tank
Parallel wheel dresser
Balancing arbor
Oil tank guard
Wheel flange and wheel
Digital readout for Y/Z axis
Wheel extractor
Balancing stand
Standard dressing stand (not include diamond pen)
Include diamond pen
Leveling wedge
Magnetic separator apparatus
Tools and tool box
Magnetic separator and paper filter coolant tank
Paper filter apparatus
Dust collector
