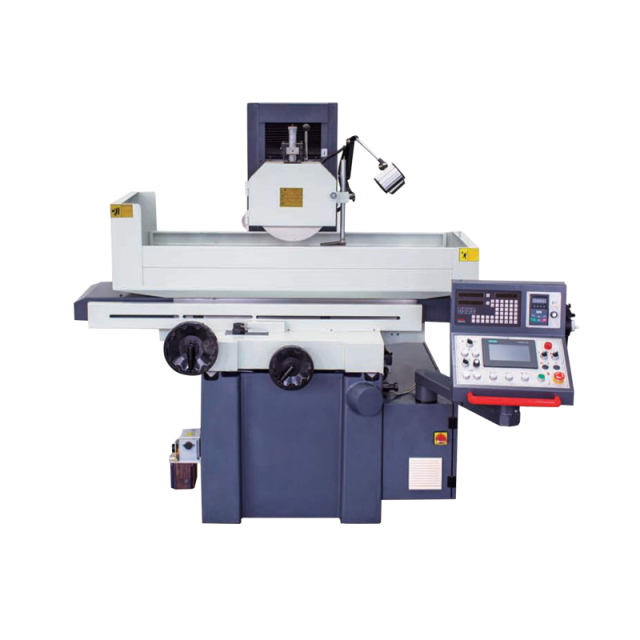

AH: Hydraulic longitudinal feed, Manual cross and vertical feed.AHR: Auto cross feed, Hydraulic longitudinal feed, Rapid vertical feed.AHD: Auto cross feed, Hydraulic longitudinal feed, Auto vertical feed.
Specifications
SGA40100AH
SGA40100AHR
SGA40100AHD
Table size
406x1020mm
Magnetic chuck size
400x1000mm
Max. distance from spindle to table
580mm
Table cross travel
450mm
Table longitudinal travel
1130mm
Max. load capacity of table(including chuck)
600kg
Speed of table longitudinal movement
5-25m/min
Cross motion
Intermittent feed rate
0.1-8mm/t
Rapid speed
990mm/min
Feed of handwheel
0.02mm/div
Vertical motion
Auto down feed rate
/
0.005-0.05mm/t
Rapid down speed
650
480
0.005mm/div
Spindle rotating speed
1450r/min (50Hz), 1750r/min (60Hz)
Grind wheel size
350x40x127mm
Spindle motor power
4kW
Floor space
4400x2400x1900mm
G.W.
3700kg
Packing size
2950x2270x2210mm
Standard Accessories
Optional Accessories
Electrical magnetic chuck
Luxurious splashing board
Coolant tank
Parallel wheel dresser
Balancing arbor
Oil tank guard
Wheel flange and wheel
Digital readout for Y/Z axis
Wheel extractor
Balancing stand
Standard dressing stand (not include diamond pen)
Include diamond pen
Leveling wedge
Magnetic separator apparatus
Tools and tool box
Magnetic separator and paper filter coolant tank
Paper filter apparatus
Dust collector
