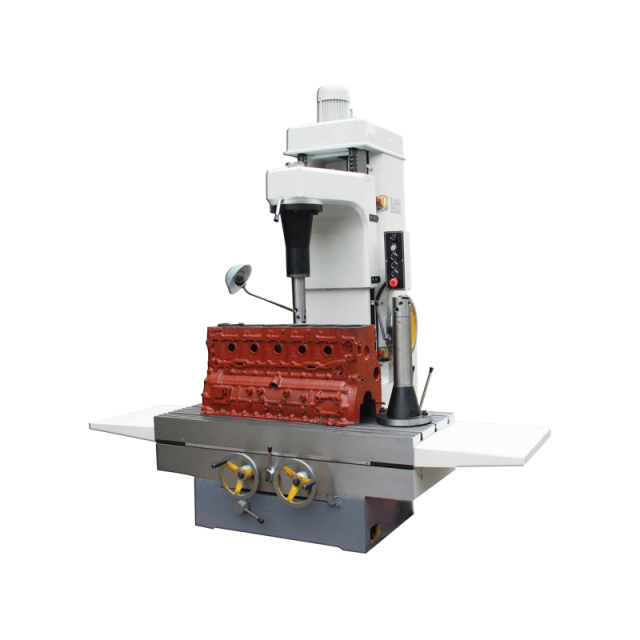

Mainly for boring cylinder hole & cylinder liner inner hole of of internal-combustion engine of vehicles & tractors, also used for fine boring inner hole of other parts.
T8018C mainly for medium/large/heavy engines.
|
Specifications |
T8018A |
|
Processing diameter |
30-180mm |
|
Max. boring depth |
450mm |
|
Spindle speed |
Variable |
|
Spindle feed capacity |
0.05/0.1/0.2mm/r |
|
Spindle rapid move speed |
2650mm/min |
|
Distance between spindle nose and table surface |
0-500mm |
|
Distance between spindle axis and carriage vertical plane |
320mm |
|
Max. longitudinal travel of table |
800mm |
|
Max. cross travel of table |
100mm |
|
Table size |
1200x500mm |
|
Main motor |
3.3/4kW |
|
Overall size |
2000x1230x1920mm |
|
Packing size |
1370x1370x2250mm |
|
N.W./G.W. |
2000/2200kg |
