Mainly for boring cylinder hole & cylinder liner inner hole of of internal-combustion engine of vehicles & tractors, also used for fine boring inner hole of other parts.

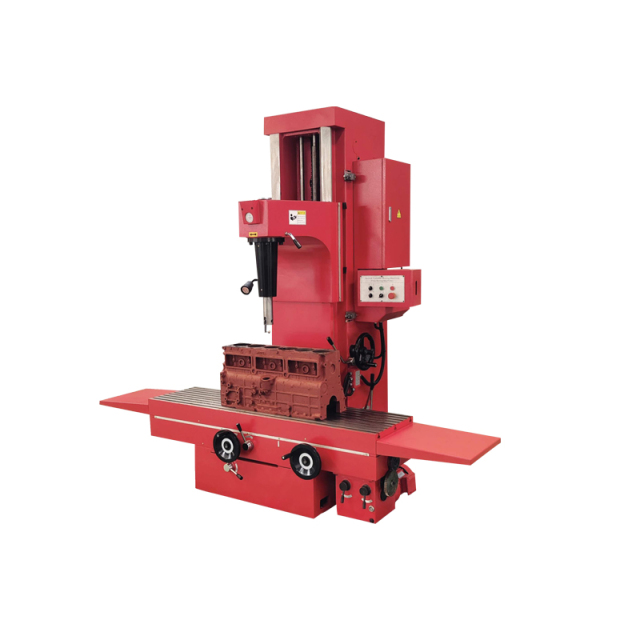

T8018C mainly for medium/large/heavy engines.
|
Specifications |
T8018C |
|
Processing diameter |
30-180mm |
|
Max. boring depth |
650mm |
|
Max. milling diameter |
350mm |
|
Spindle speed |
175/230/300/350/ |
|
Spindle feed capacity |
0.05/0.1/0.2mm/r |
|
Spindle rapid move speed |
2800mm/min |
|
Distance between spindle nose and table surface |
0-800mm |
|
Distance between spindle axis and carriage vertical plane |
355mm |
|
Table longitudinal feed |
95/153mm/min |
|
Table longitudinal rapid move speed |
1150mm/min |
|
Max. longitudinal travel of table |
1500mm |
|
Max. cross travel of table |
150mm |
|
Table size |
1680x450mm |
|
Main motor |
3.3/4kW |
|
Overall size |
2680x1500x2325mm |
|
Packing size |
1550x1880x2490mm |
|
N.W./G.W. |
3500/3700kg |
