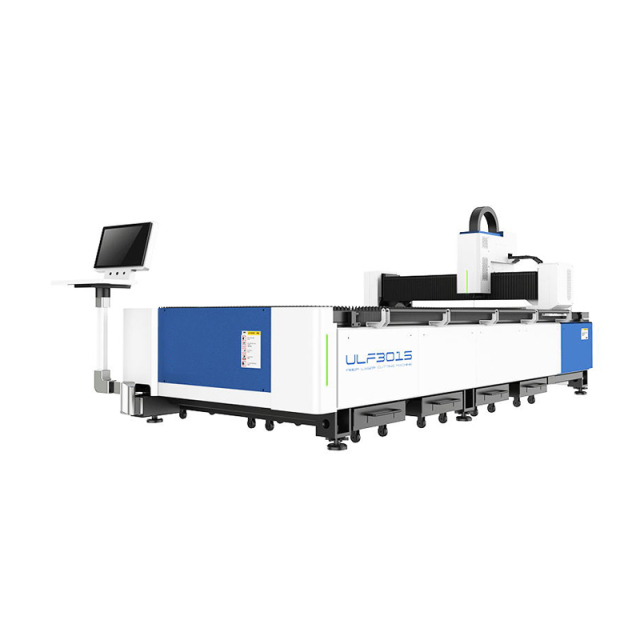

ULF Laser Cutting Machine

Outlook
The electric cabinet / laser is integrated with the equipment without secondary disassembly and assembly, so as to avoid the pollution of optical components and shorten the installation time. The installation can be completed in 2 hours. Modular splicing, simple and convenient maintenance.

Mechanical Bed
The internal structure adopts hollow + fish scale anti burning to protect the overall structure.
It is welded by multiple rectangular pipes, and stiffeners are set inside the pipe to increase the strength and tensile property of the bed.
The whole frame is annealed at high temperature, shot blasted at high speed, and stress relief technology is applied to effectively avoid bed deformation and ensure no deformation after 20 years of use.

Beam
High rigidity and lightweight design optimized by finite element analysis;
High speed, good dynamic characteristics and fast acceleration.

Laser Source
The brand of our fiber laser source including Raycus (China), n-Light (USA), IPG (Germany), with the power from 1000W to 20,000W.
Constant BPP in full power range, good beam quality, small spot, more than 30% electro-optic conversion efficiency;
Modular "plug and play" design, compact and firm structure, convenient installation.

Cutting Head
The auto focusing laser cutting head can adjust the focus according to the material thickness.
It is suitable for multi focus section, shorten the cutting time and improve the cutting quality.
The anti-collision protection structure of the cutting head is patented, and the waste cutting micro connection prevents the plate from warping, so as to realize the high-speed operation and high stability during cutting.

Control System
Cypcut cutting software, China's cutting software specially designed for fiber laser cutting machine.
It has the advantages of convenient installation, simple debugging and excellent performance, and supports the speed adjustment with power.
It can set the import linear speed separately and has a powerful cutting process database.

Automatic Lubrication
The timed automatic lubrication system can automatically start and add lubricating oil according to the working time, which is convenient and fast.

Water Chiller
With the functions of over temperature alarm, flow protection, water level protection and other safety alarm tips.

Air Cooler
It is used to reduce the overall temperature inside the electrical cabinet and ensure the stable operation of the electrical cabinet.
