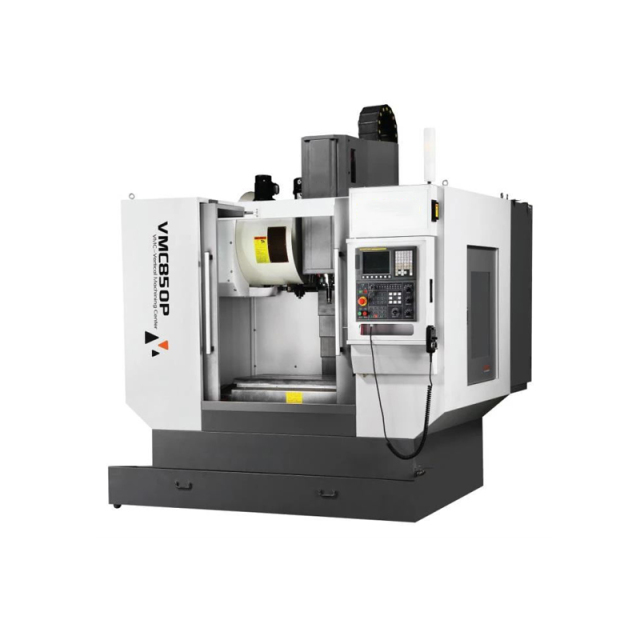

Best Performance Top Selling Vertical Machining Center
P series is the top selling machine series due to its intergrated machining performance on rigidity and accuracy.It is designed by independent R&D department who collects enough feedback from nearly 10000 sets VMC in the market.
|
Item |
VMC850P |
V8P |
VMC1000P |
V10P |
|
|
Table |
Table size |
1000x500mm |
1200x520mm |
||
|
Max. load capacity |
500kg |
600kg |
|||
|
T-slots (No./width/pitch) |
5x18-100mm |
||||
|
Distance from table surface to spindle |
100-650mm |
80-650mm |
|||
|
Distance from table to floor |
900mm |
||||
|
Spindle |
Spindle taper |
BT40 |
|||
|
Spindle rpm |
8000rpm |
12000rpm |
8000rpm |
12000rpm |
|
|
Spindle power output |
11/15kW |
7.5/11kW |
11/15kW |
7.5/11kW |
|
|
Spindle torque (FANUC) |
52.5N.m |
35.8N.m |
52.5N.m |
35.8N.m |
|
|
Spindle driving method |
belt |
direct |
belt |
direct |
|
|
Feed |
Travel (X/Y/Z) |
850/500/550mm |
1000/520/535mm |
||
|
Distance from column to spindle center |
582mm |
||||
|
Rapid traverse rate |
48/48/32m/min |
||||
|
Slide type |
LM guide |
||||
|
ATC |
Number of tools |
24pcs |
|||
|
Max. tool diameter |
78/120mm |
||||
|
Max. tool length |
300mm |
||||
|
Max. tool weight |
8kg |
||||
|
Tool change time |
2.5sec |
||||
|
Accuracy |
Positioning accuracy |
0.008mm |
|||
|
Re-positioning accuracy |
0.005mm |
||||
|
Air consumption |
6-8kg |
||||
|
Electric power supply |
20kVA |
||||
|
Voltage |
380/50V/Hz |
||||
|
Machine |
Machine dimension |
2460×2355×2860mm |
|||
|
Machine weight |
5500kg |
5800kg |
|||
