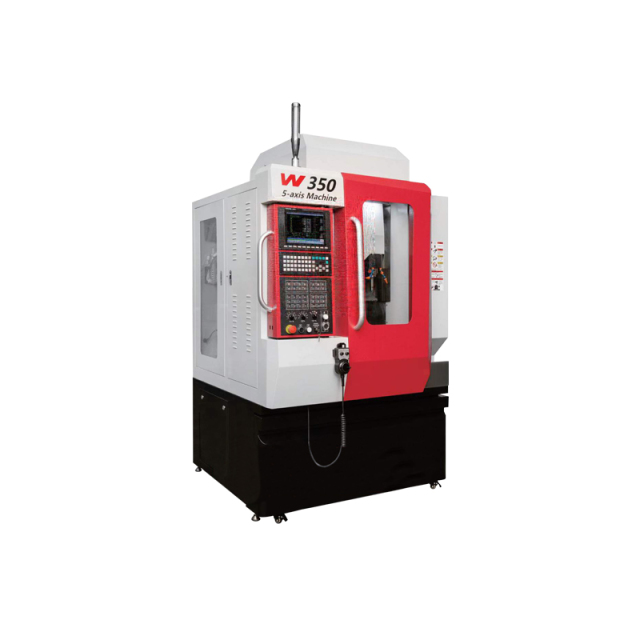

Specifications |
W150 |
W250 |
W350 |
|
Table size |
180mm |
240mm |
320mm |
|
Max. load |
20kg |
30kg |
50kg |
|
X travel |
220mm |
240mm |
400mm |
|
Y travel |
350mm |
390mm |
600mm |
|
Z travel |
200mm |
280mm |
350mm |
|
A swing angle |
-110°~+90° |
±110° |
-120°~ +120° |
|
C swing angle |
360° |
360° |
360° |
|
X/Y/Z |
8m/min |
10m/min |
24m/min |
|
A swing speed |
25rpm |
25rpm |
60rpm |
|
C swing speed |
30rpm |
30rpm |
120rpm |
|
Spindle taper |
ISO20/ER16 |
ISO20/ER16 or BT30/ER16 |
HSKE40/ER25 |
|
Spindle speed |
24000r/min |
24000r/min |
24000r/min |
|
Spindle power |
2200W |
3000W |
8500W |
|
Tool number |
12 |
12 |
20 |
|
Max. tool length |
100mm |
100mm |
100mm |
|
Max. tool weight |
1.5kg |
1.5kg |
3kg |
|
X/Y/Z positioning accuracy |
0.01mm |
0.01mm |
0.005mm |
|
A/C positioning accuracy |
40s |
30s |
5s |
|
X/Y/Z repeatability accuracy |
0.005mm |
0.005mm |
0.003mm |
|
A/C repeatability accuracy |
20s |
20s |
4s |
|
Machine weight |
950kg |
1600kg |
5000kg |
|
Total power |
6000W |
8000W |
25000W |
|
Machine size |
1200x1200x2300mm |
1350x1400x2200mm |
1770x2540x2580mm |
