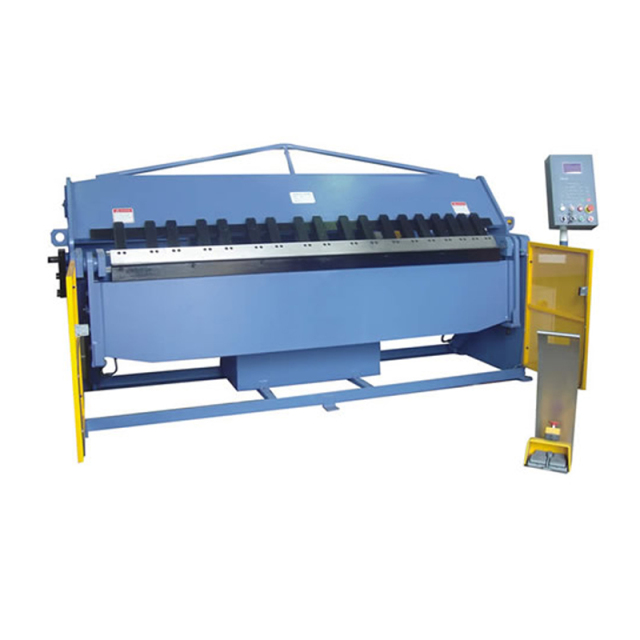

Welded steel structure and vibratory stress relief, so the precision is well maintained.
The machine adopts hydraulic driving, with low energy consumption, long use life and easy maintenance.
Divided upper die can be used in the production of disk and box. And the max. open height is 110mm.
CNC control for bending angle and back gauge. And its operation is fast and correct.
|
Model |
Bending Thickness |
Bending Width |
Bending Angle |
Upper Beam Opening |
Motor power |
Net Weight |
Dimensions |
|
W62K-2X2500 |
2mm |
2500mm |
120° |
110mm |
2.2kW |
1980kg |
3400x1140x1450mm |
|
W62K-3X2000 |
3mm |
2000mm |
120° |
110mm |
4kW |
2500kg |
2900x1640x1650mm |
|
W62K-3X2500 |
3mm |
2500mm |
120° |
110mm |
4kW |
2750kg |
3400x1640x1650mm |
|
W62K-3X3200 |
3mm |
3200mm |
120° |
110mm |
4kW |
3350kg |
4100x1640x1650mm |
|
W62K-3X4000 |
3mm |
4000mm |
120° |
110mm |
4kW |
6100kg |
4900x1640x1850mm |
|
W62K-4X1320 |
4mm |
1320mm |
120° |
110mm |
4kW |
1950kg |
2270x1640x1650mm |
|
W62K-5X2500 |
5mm |
2500mm |
120° |
110mm |
5.5kW |
3250kg |
3450x1640x1650mm |
|
W62K-5X3200 |
5mm |
3200mm |
120° |
110mm |
5.5kW |
3950kg |
4150x1640x1650mm |
