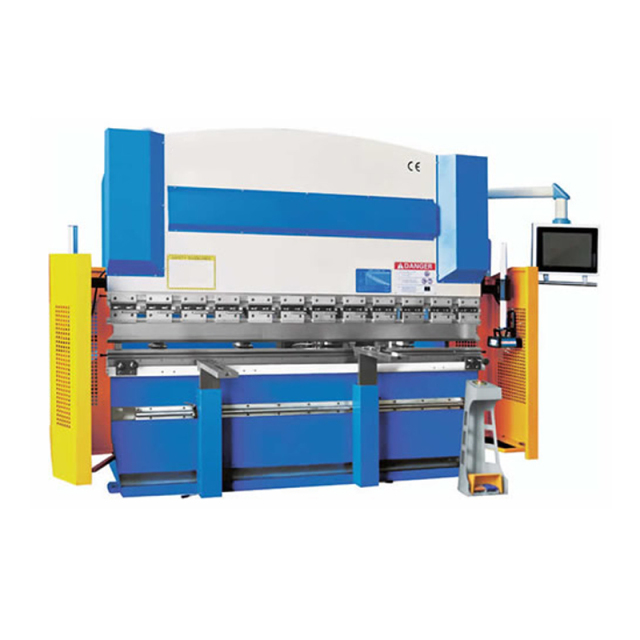

Welded steel structure, vibratory stress relief, high mechanical strength and good rigidity.
Hydraulic transmission, steady and reliable operations.
Built-in mechanical block, torsion axis and high precision.
Back gauge adopts ball screw, linear guide and synchronous belt.
2 axis control, X controls the back gauge and Y controls the ram.
Multi-process step program enables automatic multi-step and processing of parts which requires several process steps at one time and thus improve the production efficiency.
|
Model |
Nominal Force |
Table Length |
Column Distance |
Throat Depth |
Stroke |
Open Height |
Stroke |
Motor Power |
Net Weight |
Dimensions |
|
Unit |
kN |
mm |
mm |
mm |
mm |
mm |
mm |
kW |
kg |
mm |
|
W67K-30/1320 |
300 |
1320 |
1140 |
200 |
80 |
320 |
60 |
3 |
2000 |
1940x1510x1905 |
|
W67K-30/1600 |
300 |
1600 |
1420 |
200 |
80 |
320 |
60 |
3 |
2300 |
2220x1510x1905 |
|
W67K-40/1320 |
400 |
1320 |
1120 |
200 |
100 |
340 |
80 |
4 |
2200 |
1950x1600x2070 |
|
W67K-40/1600 |
400 |
1600 |
1400 |
200 |
100 |
340 |
80 |
4 |
3000 |
2230x1600x2070 |
|
W67K-40/2000 |
400 |
2000 |
1800 |
200 |
100 |
340 |
80 |
4 |
3300 |
2555x1600x2070 |
|
W67K-40/2500 |
400 |
2500 |
2300 |
200 |
100 |
340 |
80 |
4 |
3600 |
3055x1600x2070 |
|
W67K-63/2500 |
630 |
2500 |
2260 |
250 |
100 |
355 |
80 |
5.5 |
4800 |
3100x1725x2355 |
|
W67K-63/3200 |
630 |
3200 |
2960 |
250 |
100 |
355 |
80 |
5.5 |
5600 |
3800x1725x2355 |
|
W67K-80/2500 |
800 |
2500 |
2240 |
250 |
100 |
355 |
80 |
7.5 |
5900 |
3100x1725x2240 |
|
W67K-80/3200 |
800 |
3200 |
2940 |
250 |
100 |
355 |
80 |
7.5 |
6600 |
3800x1725x2240 |
|
W67K-80/4000 |
800 |
4000 |
3740 |
250 |
100 |
355 |
80 |
7.5 |
7800 |
4600x1765x2400 |
|
W67K-100/2500 |
1000 |
2500 |
2210 |
320 |
120 |
415 |
100 |
7.5 |
7300 |
3150x1850x2530 |
|
W67K-100/3200 |
1000 |
3200 |
2910 |
320 |
120 |
415 |
100 |
7.5 |
8100 |
3850x1850x2690 |
|
W67K-100/4000 |
1000 |
4000 |
3710 |
320 |
120 |
415 |
100 |
7.5 |
9200 |
4750x1850x2800 |
|
W67K-125/2500 |
1250 |
2500 |
2210 |
320 |
120 |
415 |
100 |
7.5 |
7800 |
3150x1850x2530 |
|
W67K-125/3200 |
1250 |
3200 |
2910 |
320 |
120 |
415 |
100 |
7.5 |
8150 |
3850x1850x2690 |
|
W67K-125/4000 |
1250 |
4000 |
3710 |
320 |
120 |
415 |
100 |
7.5 |
9800 |
4750x1850x2800 |
|
W67K-160/3200 |
1600 |
3200 |
2830 |
320 |
200 |
455 |
160 |
11 |
12000 |
3900x1940x2630 |
|
W67K-160/4000 |
1600 |
4000 |
3630 |
320 |
200 |
455 |
160 |
11 |
14000 |
4700x1940x2800 |
|
W67K-160/6000 |
1600 |
6000 |
5630 |
320 |
200 |
455 |
160 |
11 |
19500 |
6700x2340x3100 |
|
W67K-200/3200 |
2000 |
3200 |
2800 |
320 |
200 |
455 |
160 |
15 |
15800 |
3900x2000x2970 |
|
W67K-200/4000 |
2000 |
4000 |
3600 |
320 |
200 |
455 |
160 |
15 |
17200 |
4900x2000x2990 |
|
W67K-200/6000 |
2000 |
6000 |
5600 |
320 |
200 |
455 |
160 |
15 |
24600 |
6900x2100x3700 |
|
W67K-250/3200 |
2500 |
3200 |
2850 |
400 |
250 |
560 |
200 |
18.5 |
19200 |
3950x2200x3100 |
|
W67K-250/4000 |
2500 |
4000 |
3650 |
400 |
250 |
560 |
200 |
18.5 |
21500 |
4950x2200x3300 |
|
W67K-250/6000 |
2500 |
6000 |
5650 |
400 |
250 |
560 |
200 |
22 |
28800 |
6950x2300x3700 |
|
W67K-300/3200 |
3000 |
3200 |
2720 |
400 |
250 |
560 |
200 |
22 |
22800 |
4000x2300x3500 |
|
W67K-300/4000 |
3000 |
4000 |
3520 |
400 |
250 |
560 |
200 |
22 |
24900 |
4800x2300x3600 |
|
W67K-300/6000 |
3000 |
6000 |
5520 |
400 |
250 |
560 |
200 |
30 |
32000 |
6800x2600x3800 |
|
W67K-400/3200 |
4000 |
3200 |
2800 |
400 |
320 |
630 |
270 |
30 |
24000 |
3800x2680x3440 |
|
W67K-400/4000 |
4000 |
4000 |
3600 |
400 |
320 |
630 |
270 |
30 |
30000 |
4800x2680x3540 |
