Specifications |

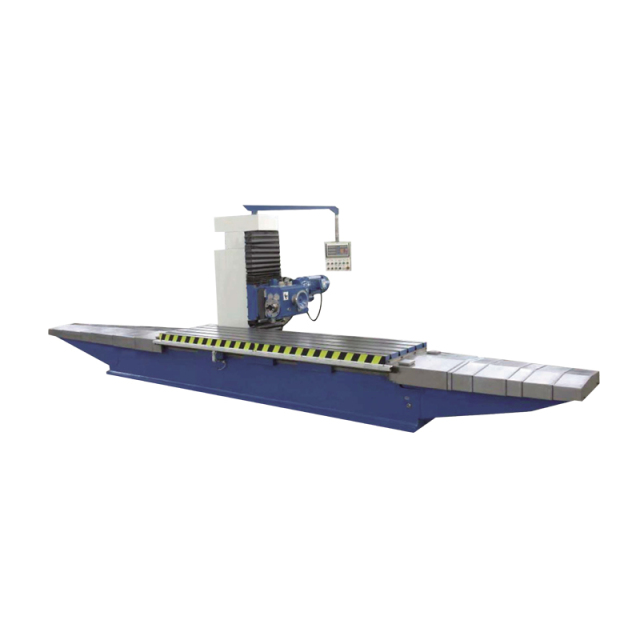

X1506 |
X1508 |
|
|
Distance between spindle and table surface |
0-750/1000mm |
||
|
Table travel |
1500/2000/2500/3000mm |
||
|
Table size |
Length |
1500/2000/2500/3000mm |
|
|
Width |
630mm |
800mm |
|
|
No. of T-slot |
5pcs |
||
|
Width of T-slot |
22mm |
||
|
Table feeding speed |
Feed |
Variable |
|
|
Rapid travel |
1400mm/min |
||
|
Spindle taper |
7:24 ISO50 |
||
|
Spindle speed range |
6 steps 82-505r/min |
||
|
Spindle swivel angle |
±35° |
||
|
Vertical travel speed of milling head |
Variable |
||
|
Stroke of milling head |
350mm |
||
|
Power of spindle motor |
7.5kW |
||
|
Power of milling head feed motor |
0.4kW |
||
|
Power of table motor |
2.2 (1500mm) /3 (2000/2500mm) /4kW |
||
|
Max. workpiece weight |
1500/1500/2000/2000kg |
||
