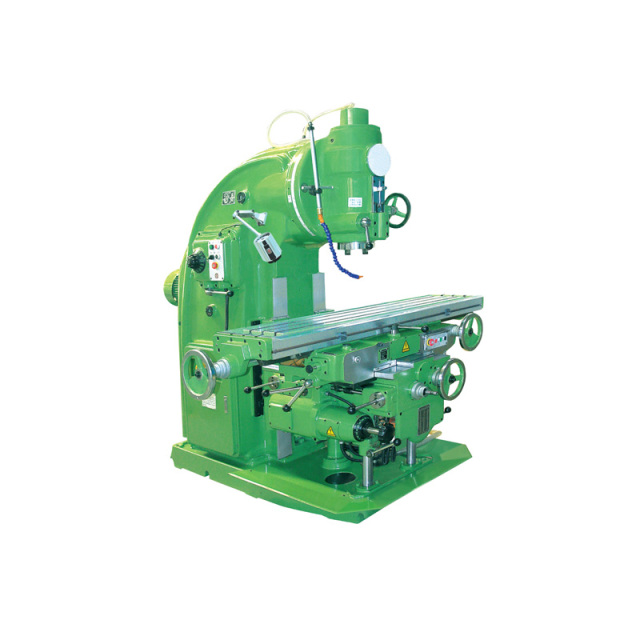

This product is easy to operate, reliable performance.
Widely used in all kinds of mechanical processing department.
Machining of various surfaces, grooves, gears, etc.
Optional milling machine accessories, such as rotary table and dividing head, can further expand the use of the machine.
|
Specifications |
X5040 |
|
Table size |
1700x400mm |
|
No. of T-slot |
3pcs |
|
Width of T-slot |
18mm |
|
Max. load |
800kg |
|
Longitudinal travel (manual/auto) |
900/880mm |
|
Cross travel (manual/auto) |
315/300mm |
|
Vertical travel (manual/auto) |
385/365mm |
|
Rapid feed speed |
X:2300, Y:1540, Z:770mm/min |
|
Table feed range (X/Y/Z-axis) |
23.5-1180/15-786/8-394mm/min |
|
Spindle speed range |
30-1500r/min |
|
Spindle speed step |
18 steps |
|
Stroke of spindle quill |
85mm |
|
Max. swivel angle of milling head |
±45° |
|
Distance between spindle nose and table surface |
115/500mm |
|
Power of spindle motor |
11kW |
|
Overall dimensions (LxWxH) |
2556x2159x2298mm |
|
Net weight |
4250kg |
