Home > All Collections > Machines > Milling Machine > Conventional Milling Machine > X6323A Turret Milling Machine
  • X6323A Turret Milling Machine,SENMO Industrial
  • X6323A Turret Milling Machine,SENMO Industrial
HOT DEAL

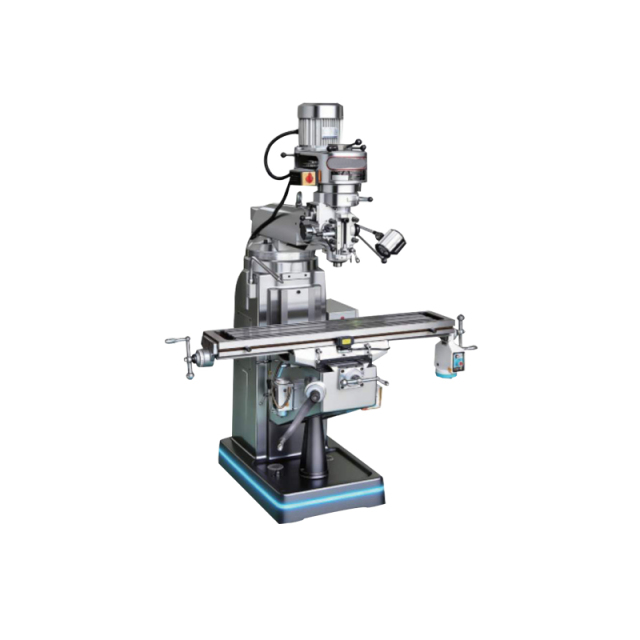

X6323A Turret Milling Machine

All models adopt dovetail way in X-axis;
X6323A and X6325A adopt dovetail way in Y/Z-axis;
X6323B and X6325B adopt box way in Y-axis and dovetail way in Z-axis;
X6325 and other bigger models adopt box way in Y/Z-axis.

X6330/A and X6333/A are standard with rapid lifting motor.

Request a Quote
Add to Cart View Quote List
  • X6323A Turret Milling Machine,SENMO Industrial
  • Specifications
  • Accessories

Specifications

X6323A

X6323B

Table size

230x1067mm (9"x42")  230x1246mm (9"x49")

Table travel

Longitudinal

670/850mm

610/790mm

Cross

310mm

310mm

Vertical

390mm

390mm

T-slot (No./width)

3pcs/16mm

3pcs/16mm

Ram travel

315mm

315mm

Distance from spindle nose to table surface

0-350mm

0-350mm

Spindle taper

Standard R8 (ISO30/ISO40 optional)

Spindle travel

127mm

127mm

Spindle speed

50Hz

(16 steps) 65-4500rpm

60Hz

(16 steps) 80-5440rpm

Optional

Variable 60-4200rpm

Auto quill feed

0.04/0.08/0.15mm/rev (0.0015"/0.003"/0.006"/rev)

Spindle motor

2.25kW (3HP)

2.25kW (3HP)

Head swivel right to left

90°

90°

Head tilting front to back

45°

45°

Packing size

1 unit per case

1400x1476x2030mm

2 units per case

1450x1570x2080mm

3 units per case

1450x2180x2080mm

Net weight

1000kg

1060kg

Standard Accessories

Optional Accessories

Draw bar

X/Y/Z axis power feed

Tool box and tools

Air drawbar system

Working lamp

Clamping kit

Electric box

Mill chuck set

Handle oil pump

Coolant system



Chip tray



Hang up panel



Automatic lubrication oil pump



3 axes with ball screws



Spindle protection with power off



Worktable protection with power off



DRO



Vice
