Speed compensation function.
2 steps gear speed regulation.
Light weight and compact, strong suction.
Efficient drilling, high strength guide, long service life.
|
Specifications |

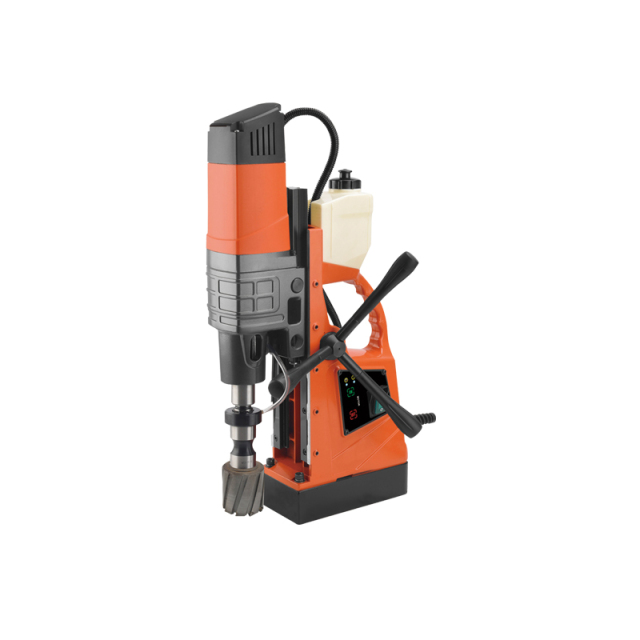

XD2-60N |
|
Rated voltage |
220/230V |
|
Rated frequency |
50/60Hz |
|
Rated power |
1600W |
|
No-load speed |
B 280r/min A 520r/min |
|
Max. twist drill diameter |
31.5mm |
|
Max. core drill diameter |
60mm |
|
Max. core drill depth |
75mm |
|
Max. stroke |
160mm |
|
Max. open gear |
300mm |
|
Max. attraction |
15000N |
|
Spindle holder |
MT3 |
|
N.W./G.W. |
20/25kg |
