Automatic feed, speed compensation function.
High power, strong suction.
Efficient drilling, high strength guide, long service life.
|
Specifications |

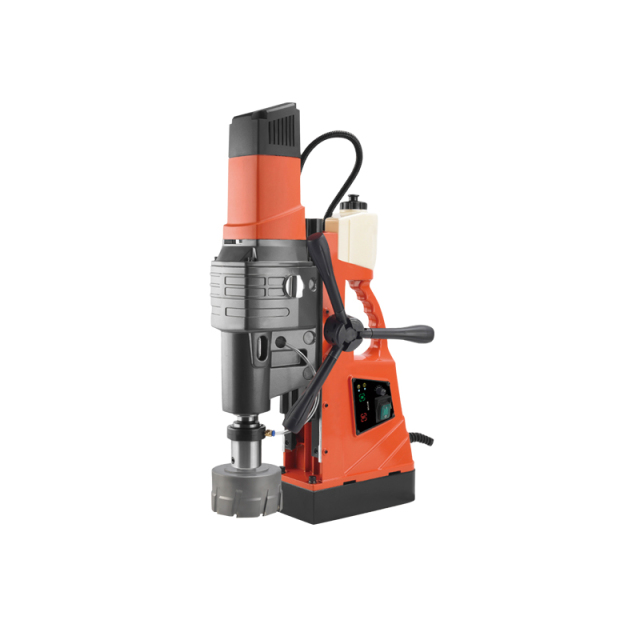

XD2-KT-120S
|
|
Rated voltage |
220/230V
|
|
Rated frequency |
50/60Hz
|
|
Rated power |
2600W
|
|
No-load speed |
B 130r/min A 215r/min
B 280r/min A 520r/min |
|
Max. twist drill diameter |
44mm
|
|
Max. core drill diameter |
120mm
|
|
Max. core drill depth |
100mm
|
|
Max. stroke |
230mm
|
|
Max. open gear |
400mm
|
|
Max. attraction |
20000N
|
|
Spindle holder |
MT4
|
|
N.W./G.W. |
30.5/35kg
|
