Powerful main motor.
Servo motors & ballscrews drivers on X/Y/Z-axis.
Centralized operation panel.
E-handwheel operation in addition to automatic feeds & rapid traverse.
CNC machine is optional.

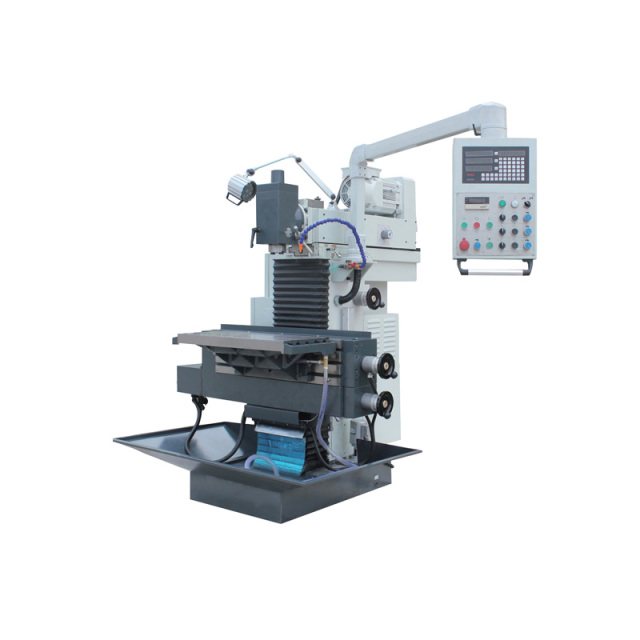

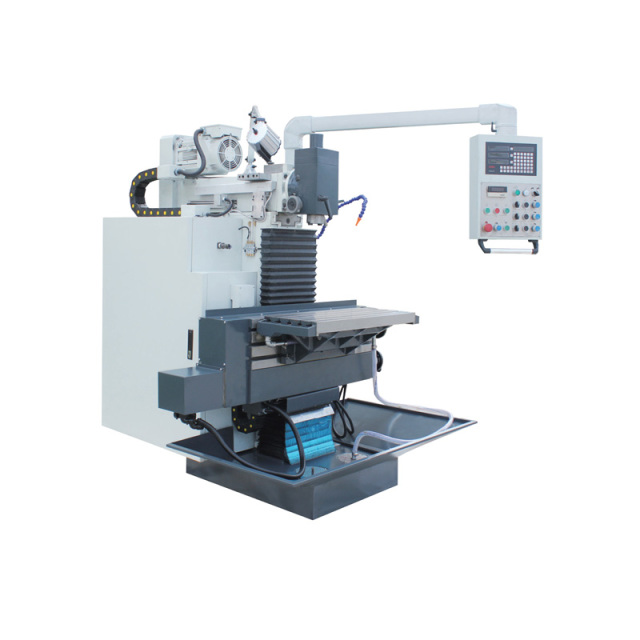

An innovative machine with latest advanced mechanics & electrics:
High flexibility
Combination of H & V spindles
Designed with flexible modules
ldeal for workshop & training
High accuracy
Variable spindle speeds in 2 steps
Servo motors on X/Y/Z-axis
Ballscrews on X/Y/Z-axis
High efficiency
Centralized operation panel
E-handwheel or AUTO operation
Automatic lubrication
|
Specifications |
XL8132 |
XL8140 |
XL8145 |
|
Horizontal table size (LxW) |
750x320mm |
800x400mm |
850x450mm |
|
T-slot (No./width/pitch) |
5pcs/14/63mm |
6pcs/14/63mm |
7pcs/14/63mm |
|
Vertical table size (LxW)) |
890x225mm |
1020x225mm |
1190x250mm |
|
T-slot (No./width/pitch) |
3pcs/14/63mm |
3pcs/14/63mm |
3pcs/14/63mm |
|
Max. table load |
160kg |
200kg |
300kg |
|
X/Y/Z-axis travel |
405/305/400mm |
500/400/400mm |
600/450/450mm |
|
Spindle taper (H/V) |
NT40 |
NT40 |
NT40 |
|
Spindle speeds (H/V) |
40-2000rpm |
40-2000rpm |
40-2000rpm |
|
Stoke of vertical spindle quill |
60mm |
60mm |
60mm |
|
Feed rate (X/Y/Z-axis) |
10-1000mm/min |
10-1000mm/min |
10-1000mm/min |
|
Rapid traverse (X/Y/Z-axis) |
1200mm/min |
1200mm/min |
1200mm/min |
|
Man motor power |
3.7kW |
3.7kW |
5.5kW |
|
Feed motor torque (X/Y/Z-axis) |
7.7/7.7/10N.m |
7.7/7.7/10N.m |
10/10/15N.m |
|
Machine weight |
1450kg |
1550kg |
1750kg |
|
Machine dimensions (LxWxH) |
1500x1700x1800mm |
1600x1700x1800mm |
1600x1800x2000mm |
