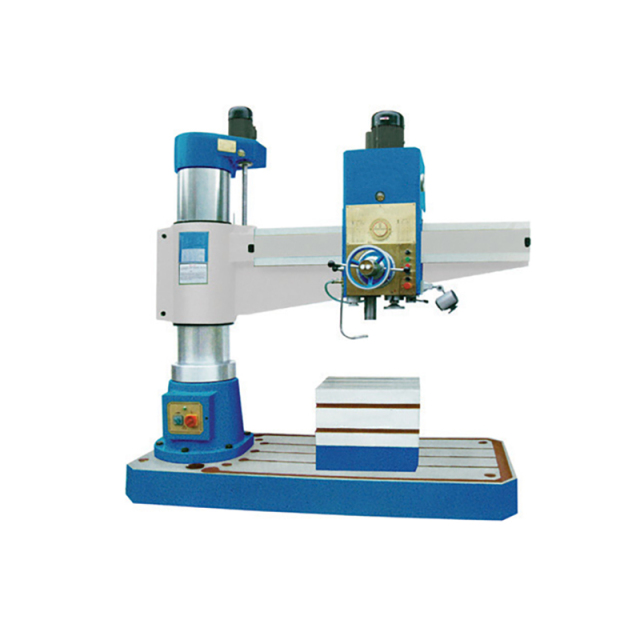

Z3040X16/1,Z3050X16/1,ZQ3050X20/1 Radial Drilling Machine

The machine offers a wide range of speeds and feed rates, and supports automatic, manual and fine-motion control; the feed can be easily engaged or disengaged at any time.
The feed safety mechanism is safe and reliable, and clamping of all components is convenient and secure.
The spindle exhibits minimal positional error during loosening and clamping; the speed-changing controls are centralized on the spindle head, facilitating operation and speed adjustment;
Hydraulic power is used to change spindle speed, ensuring responsiveness and reliability.
Castings are produced using optimal material composition and pouring equipment, ensuring the superior quality of the machine’s base components.
Key components are machined on imported machining centers, delivering high precision and efficiency, which guarantees the machine’s stable and reliable quality.
Spindle assembly components are made from special high-quality steel and processed using world-class heat treatment equipment, ensuring high strength and long-lasting wear resistance.
Major gears are ground, ensuring high precision and low noise levels.
  • Z3040X16/1,Z3050X16/1,ZQ3050X20/1 Radial Drilling Machine,SENMO Industrial
  • Specifications
  • Accessories

Specifications

Z3040X16/1

Z3050X16/1

ZQ3050X20/1

Max. drilling capacity

40mm

50mm

50mm

Distance from spindle center to column center

350-1600mm

350-1600mm

350-2000mm

Column diameter

350mm

350mm

350mm

Spindle taper

MT4

MT5

MT5

Spindle travel

Manual 315mm/Auto 115mm

Manual 315mm/Auto 115mm

Manual 315mm/Auto 115mm

Spindle speed step

16

16

16

Spindle speed

25-2000r/min

25-2000r/min

25-2000r/min

Spindle feed step

16

16

16

Spindle feed

0.04-3.2mm/r

0.04-3.2mm/r

0.04-3.2mm/r

Distance from spindle nose to base surface

350-1220mm

320-1220mm

320-1220mm

Table size

630x500x500mm

630x500x500mm

630x500x500mm

Base size

2400x1000x200mm

2400x1000x200mm

2400x1000x200mm

Main motor

4kW

4kW

4kW

Overall size

2500x1060x2650mm

2500x1060x2650mm

2900x1060x2650mm

N.W./G.W.

3400/3650kg

3400/3650kg

3550/3850kg

Packing size

2760x1120x2540mm

2760x1120x2540mm

3160x1120x2540mm

Standard Accessories

Optional Accessories

Box shape worktable

Quick instead chuck

Taper sleeve

Tapping chuck

Tool releasing wrench

Grease gun

Drift



Eyelet bolts
