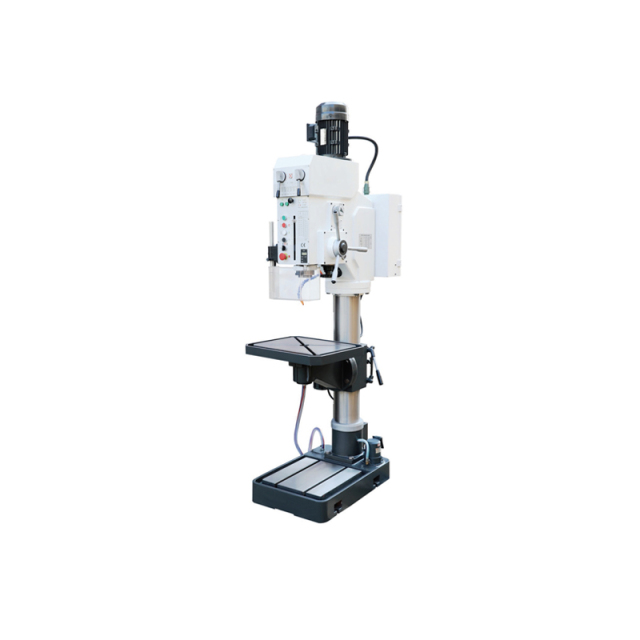

Drilling, tapping, boring, reaming.Gear driving and strong cutting power.Spindle box can be tilted ±45°.Heavy-duty tapered roller bearing spindle.
Specifications
Z5040
Max. drilling diameter (steel)
40mm
Max. tapping diameter (steel)
M24mm
Max. distance from spindle center to column center
440mm
Max. distance from spindle nose to table (auto)
600 (450)mm
Max. distance from spindle nose to base
1180mm
Spindle travel
200mm
Spindle taper
MT4
Number of spindle speed steps
12
Spindle speed range
52-1400r/min
4 steps 0.1-0.4mm/r
Table travel
450mm
Rotation angle of the spindle box in the vertical plane
±45°
Table size
580x460mm
Base size
800x525mm
T-slots (No./width) for table
2x14mm
T-slots (No./width) for base
2x18mm
Column diameter
160mm
Main motor
2.2kW
Coolant pump motor
90W
Table lifting motor
250W
Machine dimension
1120x880x2180mm
N.W./G.W.
620/680kg
Standard Accessories
Optional Accessories
Spindle protection
Electronic depth display
Cooling pump
Electronic control screen
Spindle power feed
LED working light
Tapping function
Halogen working light
Table automatic lifting
