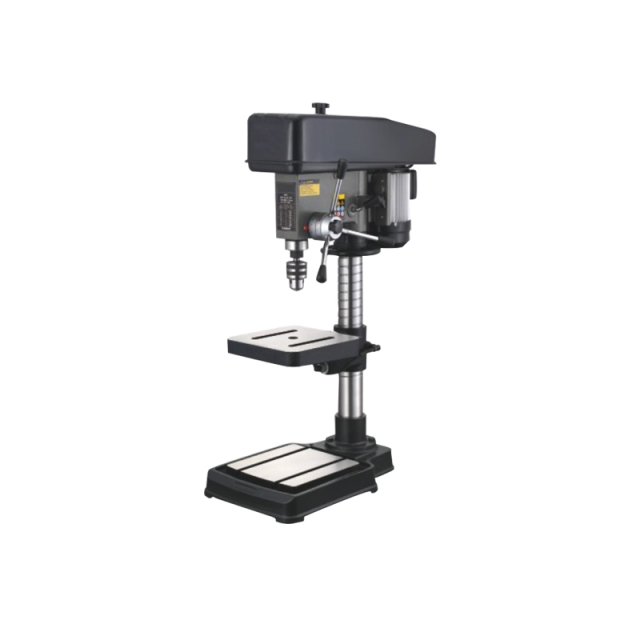

The castings are made of heavy and sturdy parts, which are processed by high-temperature tempering and aging.
Spindle housing holes are precision ground.
The surface of handle seat, dial, handle bar, etc. are dark chrome plated.
Low noise, high precision, good wear resistance and long service life.
High spindle speed.
Stable belt drive, low vibration.
High precision and good rigidity of the whole machine.
|
Specifications |
Z512A |
Z516A |
|
Max. drilling capacity |
12.7mm |
16mm |
|
Column diameter |
70mm |
70mm |
|
Spindle travel |
100mm |
100mm |
|
Distance from spindle center to column surface |
193mm |
193mm |
|
Max. distance from spindle nose to table |
300mm |
330mm |
|
Max. distance from spindle nose to base |
570mm |
570mm |
|
Spindle taper |
B16 |
MT2 |
|
Spindle speed range |
480-4100r/min |
480-4100r/min |
|
Spindle speed |
5 |
5 |
|
Table size |
265x265mm |
265x265mm |
|
Base size |
520x345mm |
520x345mm |
|
Overall height |
1042mm |
1042mm |
|
Motor |
370W |
550W |
|
N.W./G.W. |
95/110kg |
98/110kg |
|
Packing size |
760x365x1020mm |
760x365x1020mm |
