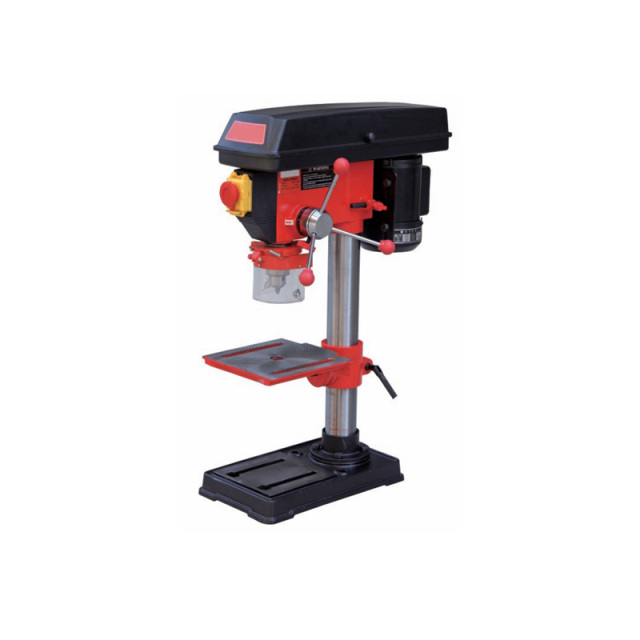

13mm (1/2'') max. chuck capacity.260mm swing.5 spindle speeds.-45° ~ 0° ~ +45° table tilt L&R.Optional chuck guard and micro switch for CE requirement.
Specifications
ZJ4113HA
Max. drilling diameter
13mm (1/2'')
Motor power
375/450W
Chuck capacity
1.5-13mm
Spindle travel
60mm
Class of speed
5
Speed 50/60Hz
620-2620/740-3140rpm
Spindle taper
B16
Max. distance from spindle axis to surface of column
130mm
Max. distance from spindle end to surface of table
255mm
Max. distance from spindle end to surface of base
370mm
Swing
260mm
Table size
190x190mm
Base size
340x210mm
Column diameter
58mm
Height
680mm
N.W./G.W.
25/27kg
Packing size
555x400x260mm

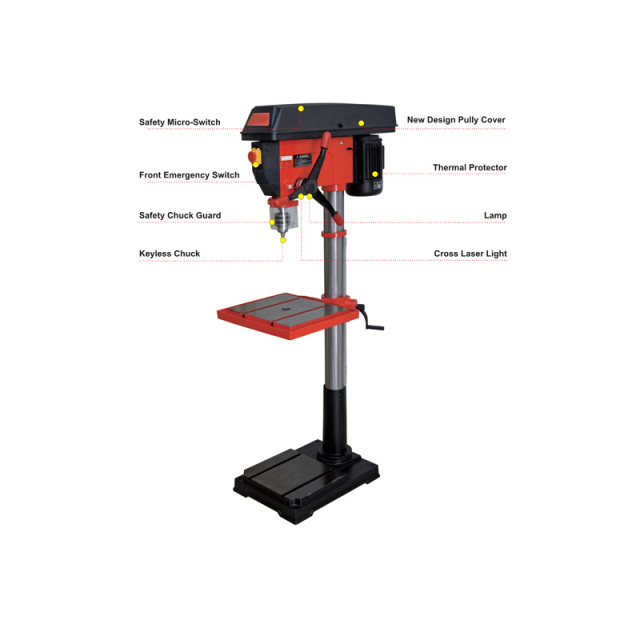

Standard Accessories
Optional Accessories
Key drill chuck
Keyless drill chuck
Front emergency switch
Safety chuck guard
Wrench set
Micro switch
Copper motor
Machine vice
Machine lamp
Cross laser light
