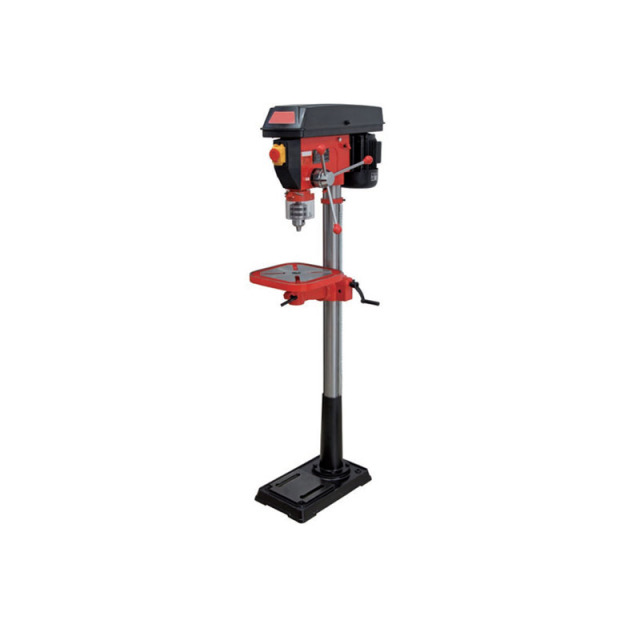

20mm (3/4'') max. chuck capacity.360mm swing.16 spindle speeds.-45° ~ 0° ~ +45° table tilt L&R.Optional chuck guard and micro switch for CE requirement.
Specifications
ZJ5120
Max. drilling diameter
20mm (3/4'')
Motor power
450/550/750W
Chuck capacity
5-20mm
Spindle travel
85mm
Class of speed
16
Speed 50/60Hz
180-2770/220-3320rpm
Spindle taper
MT2
Max. distance from spindle axis to surface of column
180mm
Max. distance from spindle end to surface of table
685mm
Max. distance from spindle end to surface of base
1175mm
Swing
360mm
Table size
290x290mm
Base size
460x272mm
Column diameter
72mm
Height
1600mm
N.W./G.W.
68/72kg
Packing size
1140x490x275mm

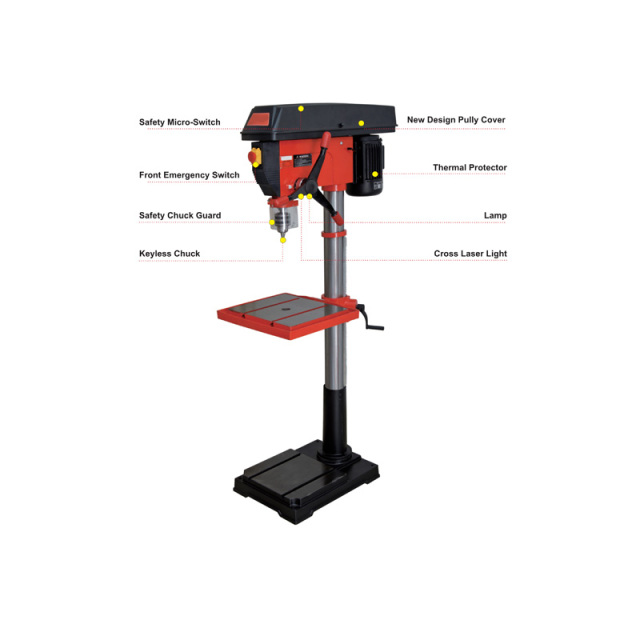

Standard Accessories
Optional Accessories
Key drill chuck
Keyless drill chuck
Front emergency switch
Safety chuck guard
Wrench set
Micro switch
Copper motor
Machine vice
Machine lamp
Cross laser light
