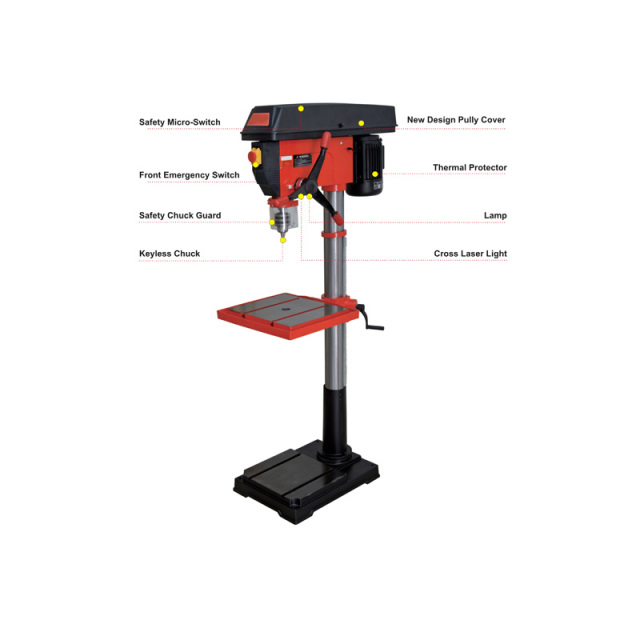

32mm (1-1/4'') max. chuck capacity.510mm swing.12 spindle speeds.-45° ~ 0° ~ +45° table tilt L&R.Cast iron handle.Optional chuck guard and micro switch for CE requirement.
Specifications
ZJ5132
Max. drilling diameter
32mm (1-1/4'')
Motor power
1100/1500W
Chuck capacity
5-20mm
Spindle travel
120mm
Class of speed
12
Speed 50/60Hz
150-2450/180-2940rpm
Spindle taper
MT4
Max. distance from spindle axis to surface of column
255mm
Max. distance from spindle end to surface of table
745mm
Max. distance from spindle end to surface of base
1205mm
Swing
510mm
Table size
420x480mm
Base size
575x425mm
Column diameter
92mm
Height
1710mm
N.W./G.W.
125/130kg
Packing size
1415x650x305mm
Standard Accessories
Optional Accessories
Key drill chuck
Keyless drill chuck
Front emergency switch
Safety chuck guard
Wrench set
Micro switch
Copper motor
Machine vice
Machine lamp
Cross laser light
