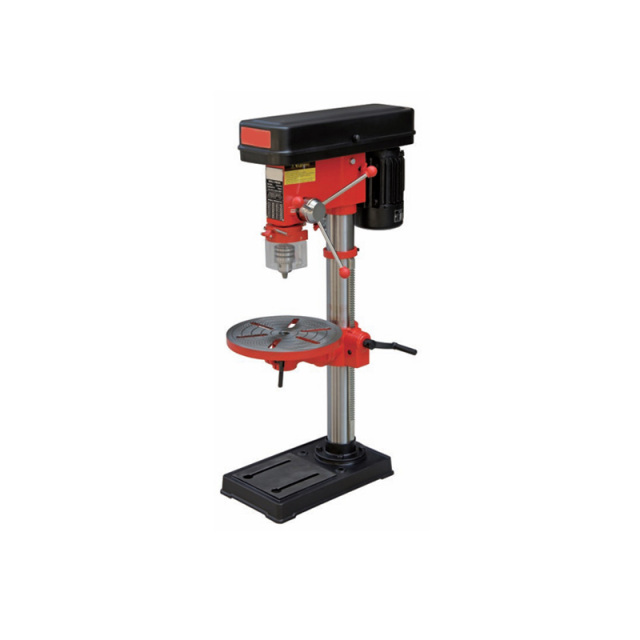

16mm (5/8'') max. chuck capacity.325mm swing.16 spindle speeds.-45° ~ 0° ~ +45° table tilt L&R.Optional chuck guard and micro switch for CE requirement.
Specifications
ZJQ4116
Max. drilling diameter
16mm (5/8'')
Motor power
375/450/550W
Chuck capacity
3-16mm
Spindle travel
80mm
Class of speed
16
Speed 50/60Hz
210-2220/220-3320rpm
Spindle taper
MT2
Max. distance from spindle axis to surface of column
162.5mm
Max. distance from spindle end to surface of table
450mm
Max. distance from spindle end to surface of base
630mm
Swing
325mm
Table size
Ø290mm
Base size
420x250mm
Column diameter
72mm
Height
980mm
N.W./G.W.
42/45kg
Packing size
770x450x260mm

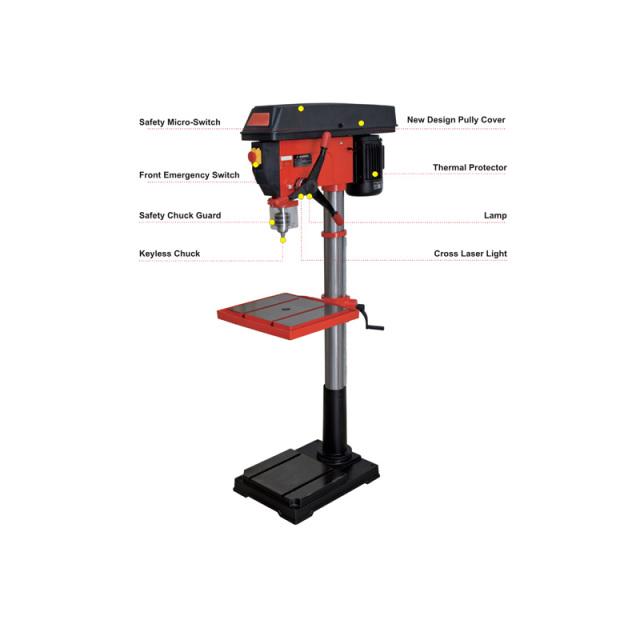

Standard Accessories
Optional Accessories
Key drill chuck
Keyless drill chuck
Side emergency switch
Safety chuck guard
Wrench set
Micro switch
Copper motor
Machine vice
Machine lamp
Cross laser light
Front emergency switch
