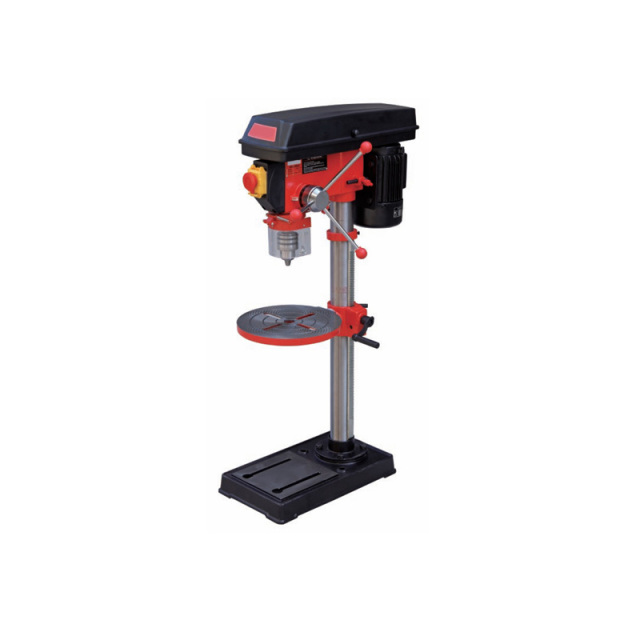

16mm (5/8'') max. chuck capacity.310mm swing.12 spindle speeds.-45° ~ 0° ~ +45° table tilt L&R.Optional chuck guard and micro switch for CE requirement.
Specifications
ZJQ4116B
Max. drilling diameter
16mm (5/8'')
Motor power
375/450/550W
Chuck capacity
3-16mm
Spindle travel
60mm
Class of speed
12
Speed 50/60Hz
300-2550/360-3060rpm
Spindle taper
MT2
Max. distance from spindle axis to surface of column
155mm
Max. distance from spindle end to surface of table
490mm
Max. distance from spindle end to surface of base
610mm
Swing
310mm
Table size
Φ260mm
Base size
420x250mm
Column diameter
58mm
Height
900/950mm
N.W./G.W.
34/36kg
Packing size
770x450x260mm

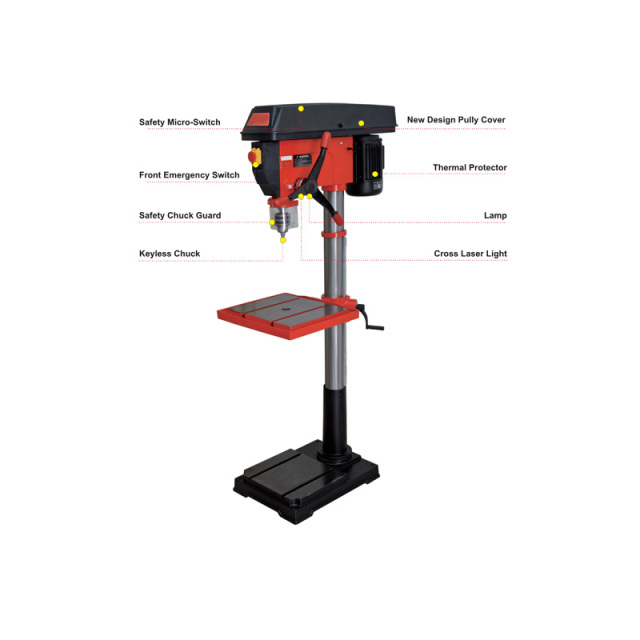

Standard Accessories
Optional Accessories
Key drill chuck
Keyless drill chuck
Front emergency switch
Safety chuck guard
Wrench set
Micro switch
Copper motor
Machine vice
Machine lamp
Cross laser light
