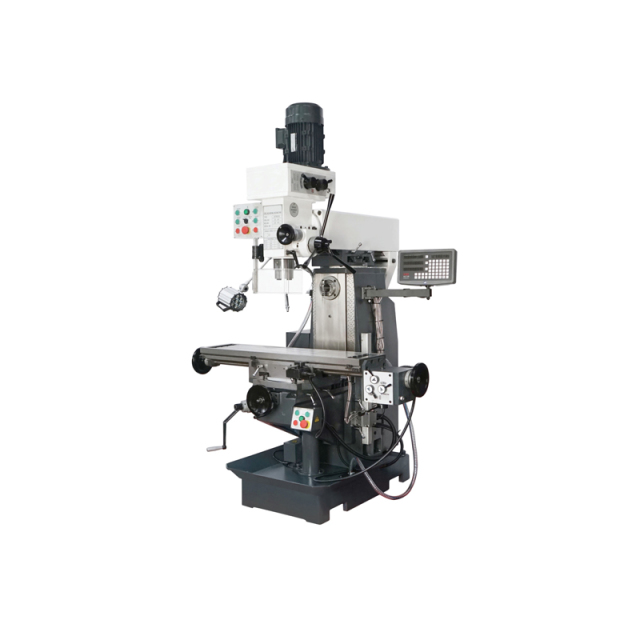

Vertical spindle gear drive, horizontal spindle belt drive.High precision spindle.
Specifications
ZX7550CW
Max. drilling dia.
30mm
Max. end milling width
100mm
Max. vertical milling dia.
25mm
Distance from spindle nose to table surface
60-360mm
Spindle speed
115-1750rpm (V) / 60-1350rpm (H)
Spindle travel
120mm
Work table size
800x240 (1000x240)mm
Table travel
400x230 (580x230)mm
Motor power
0.85/1.5kW (V) / 1.5kW (H)
N.W./G.W.
850/950kg
Packing size
1340x1140x2245mm
Standard Accessories
Optional Accessories
Draw bar
Table power feed (X-axis)
Adapter
Table power feed (Y-axis)
Taper shank for drilling chuck
Halogen working lamp
Drilling chuck
Cooling pump
T slot bolt
Power off protective cover (CE)
Washer
Digital display (3 Axis)
Nut
Double speed motor
Tilted wedge
Rotary table
Spanner
Milling chuck set (8pcs/set)
Inner hexagonal spanner
Machine Vise (160mm)
Horizontal milling bar
Oil gun
